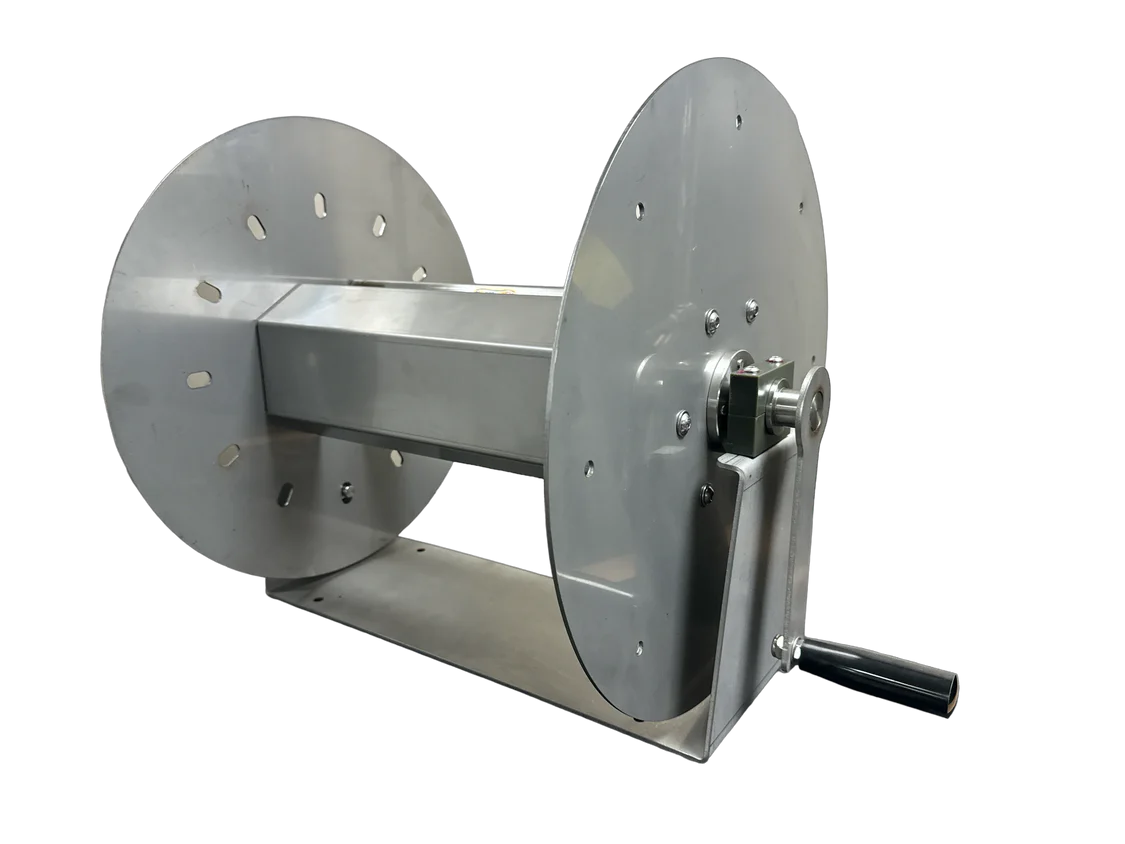

High Pressure 40m Reel ⅜" Swivels

The base frame of this hose reel is constructed from AISI 304 Stainless Steel, offering exceptional durability and resistance to corrosion. The drum is designed for smooth rotation, operated by an adjustable hand wheel and a free-wheel stainless grip for ease of use.

The hub features two robust stainless steel centres, supported by maintenance-free bearings for long-lasting, smooth operation. A mechanical brake allows the reel to lock into 12 distinct positions, ensuring secure hose management.

For added reliability, the hose reel is equipped with a high-quality swivel, made of stainless steel, ensuring seamless, low-maintenance operation and enhanced longevity. This design delivers a superior performance, making it ideal for both industrial and commercial use.

Technical Specifications:

Inlet: 3/8 Female (Inlet options: 3/8" Male, 3/8" Female Swivel, M22 Male)

Internal: 3/8 Female

Max BAR: 250

Max LPM:30

Max Temp:120ºc

Dimensions:

H: 340mm

W: 410mm

D: 320mm
