Controlled chemical dosage

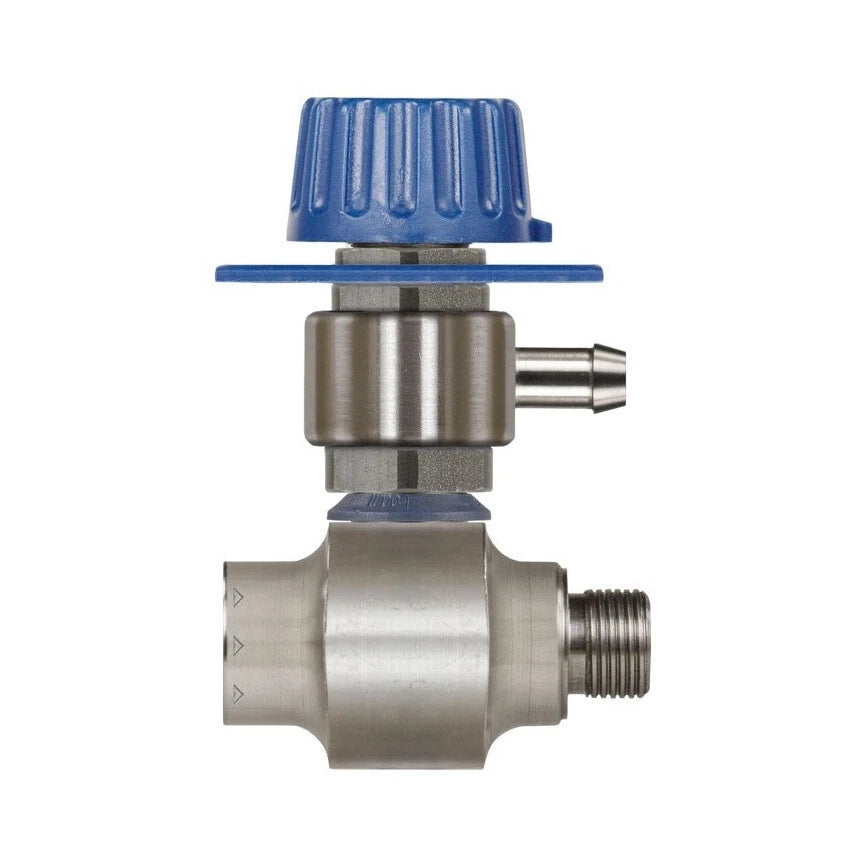

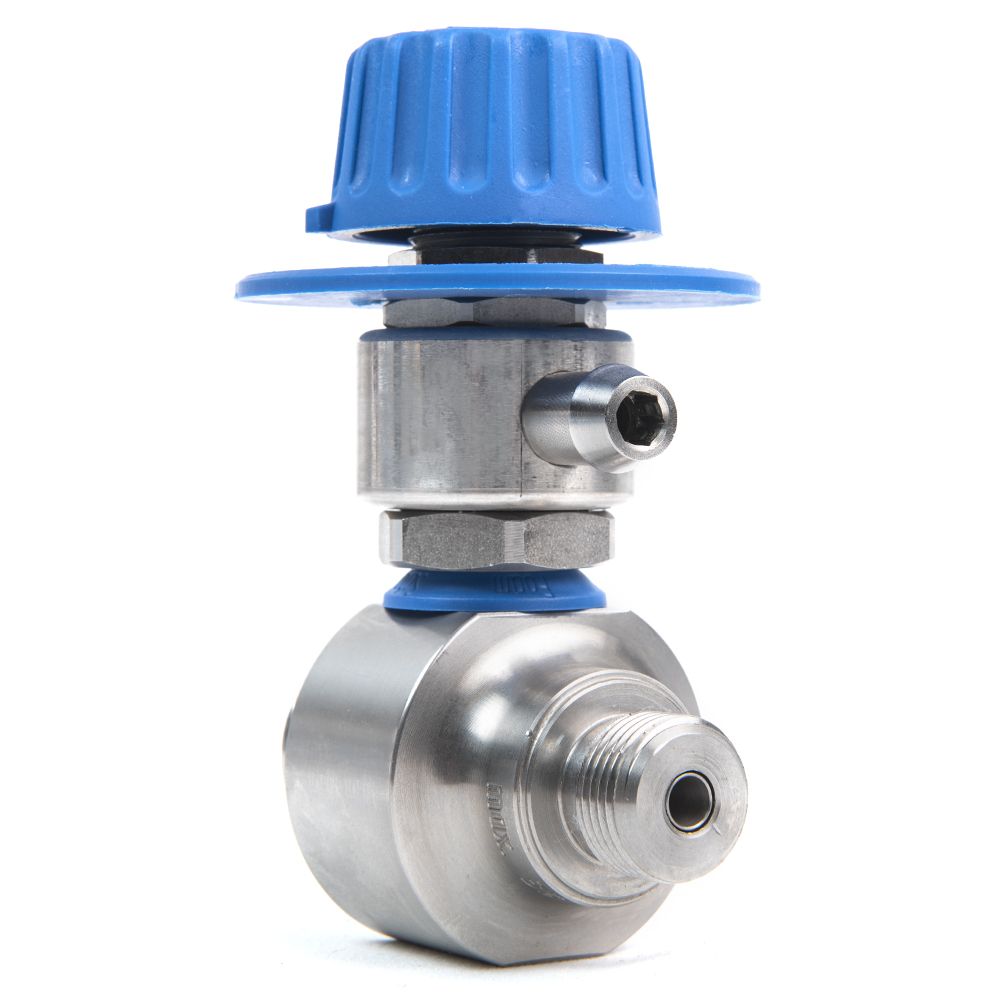

This venturi chemical injector is designed to deliver efficient and controlled chemical application by creating a vacuum effect within the water stream. When used with low-pressure devices such as a foam lance, it ensures consistent chemical draw for efficient chemical dosing.
- Efficient chemical injection using venturi vacuum technology
- Adjustable dosing via integrated metering valve (no inserts required)
- Consistent performance when paired with low-pressure nozzles
- Improves cleaning efficiency in demanding applications
- Reduces chemical waste with precise control
Technical Specification
- Nozzle Size:1.1 mm
- Inlet/Outlet:3/8"F / 3/8"M
- Max Pressure:350 bar
- Max Temperature:90°C
- Material:Stainless Steel
Export Information
- Commodity Code:8413810090
- Country of Origin:Germany
- Weight:462g

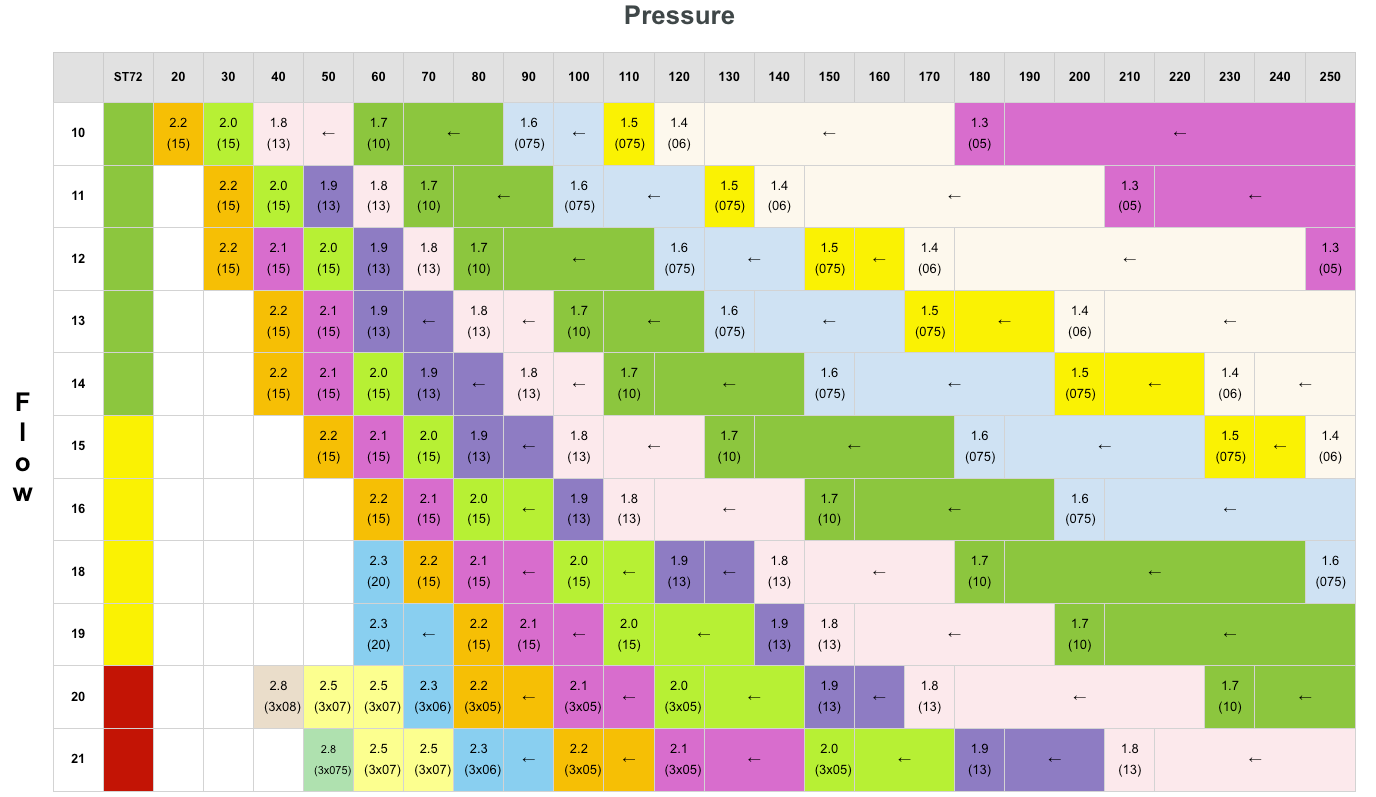

Use this chart to find the correct sized foam injector and accessories to create foam.
You will need to know the flow and pressure of the pressure washer or system that the injector is to be installed onto. Firstly select the closest flow rate on the left (round up if required), then move right across the chart until you are at the closest pressure column. The top number is the injector size you require and the number in brackets is the foam head size, click on the box to view the required accessories and different foam injector options available.
